Receiving Payments

This guide explains how to receive Lightning, on-chain Bitcoin, and BIP21 unified payments using the Voltage Payments API.

For detailed guides specific to your wallet type:

Receiving (USD Line of Credit)Receiving (USD Line of Credit) – For USD wallets (requires quotes)

Receiving (BTC Line of Credit)Receiving (BTC Line of Credit) – For BTC wallets (no quotes needed)

Dashboard cross-check

For the BTC workflow on this page, choose Mutinynet Bitcoin. If you are testing the USD line-of-credit workflow, use Mutinynet USD and follow Receiving (USD Line of Credit)Receiving (USD Line of Credit). Voltage Cash is the experimental stablecoin test wallet and is not used for either BTC or USD line-of-credit testing.

In the selected Development wallet, select Receive, enter a test amount and optional memo, and select Create Payment Request. Use the generated request only in an appropriate test workflow.

A generated or pending request is not proof of payment. Confirm the incoming terminal state in All Payments, then reconcile that state through the Payments API or webhooks for automated workflows.

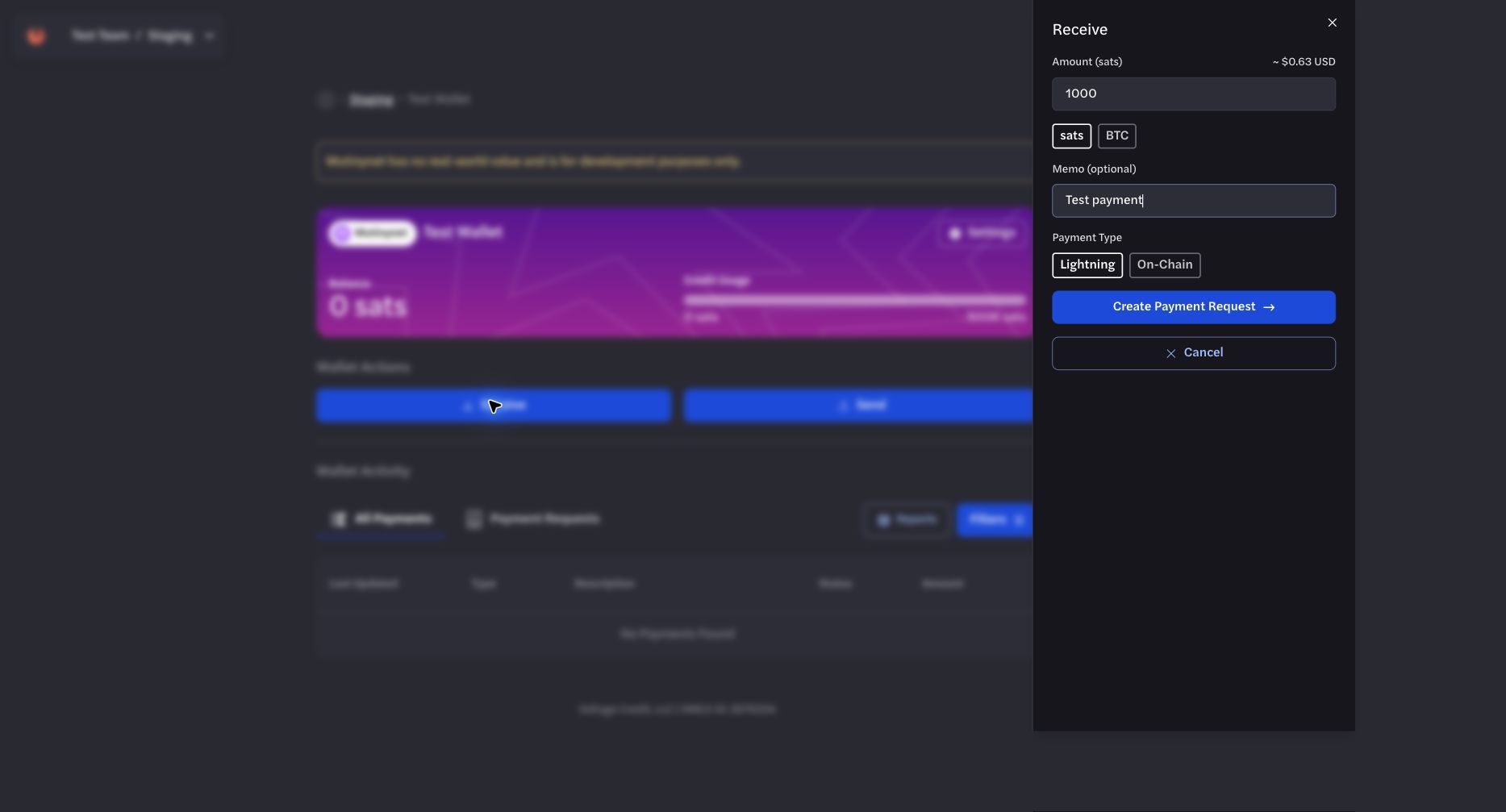

Receive form filled with a test amount and memo

Create a payment request only within an appropriate test workflow.

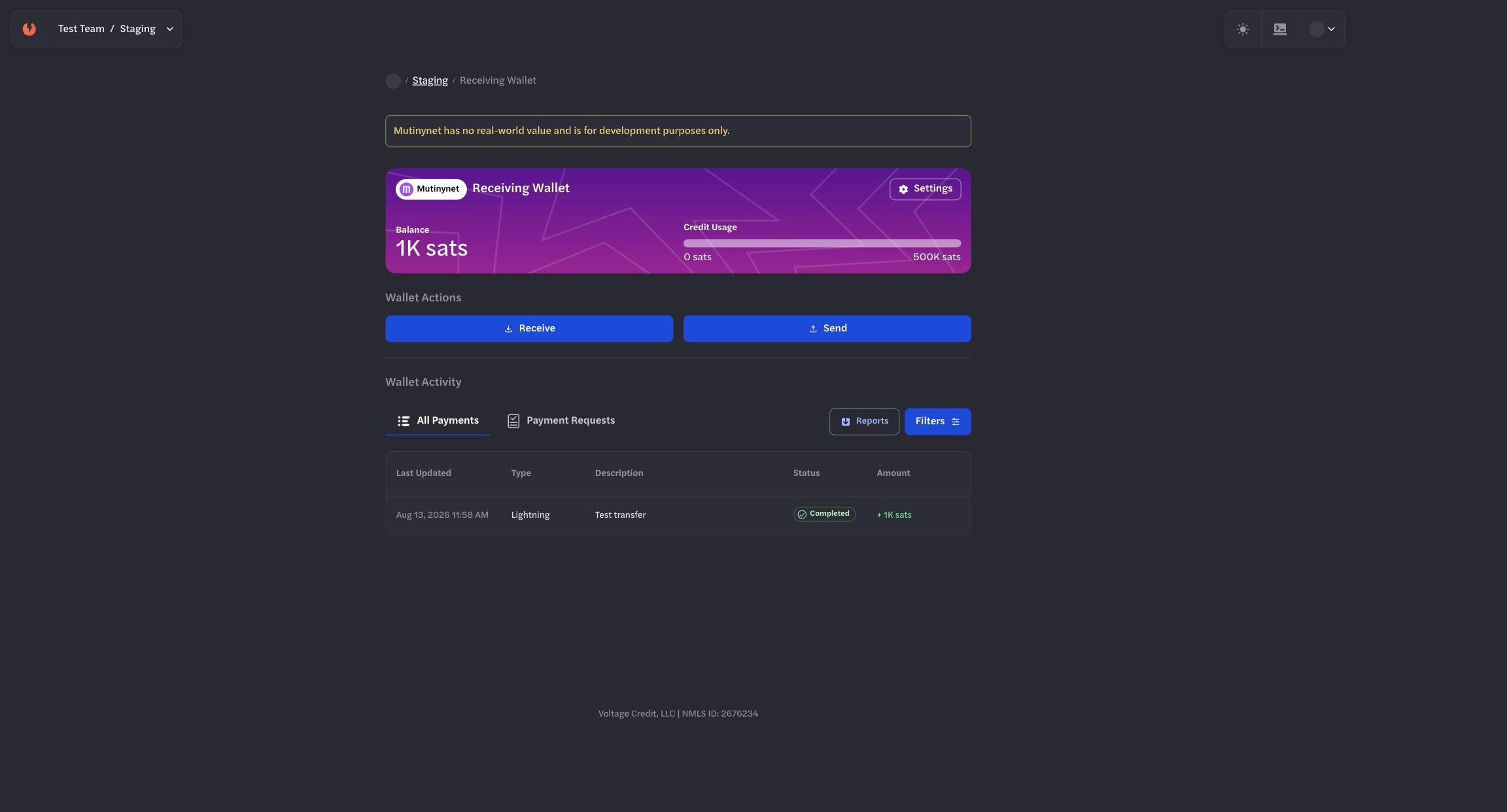

Incoming test payment in the receiving wallet history

Confirm the incoming terminal state in the receiving wallet and through the API or webhooks.

Prerequisites

A Voltage account with at least one wallet in the target environment

An environment API key (x-api-key) from your dashboard

For USD wallets (receiving BTC → USD), a Line of Credit and access to the Quotes API

High‑Level Flow

Receiving a payment is still a two‑step process:

Create a receive payment request (invoice / address / URI)

Retrieve the payment to get the invoice details and monitor status

All of this happens via the Payments endpoints:

POST /organizations/{organization_id}/environments/{environment_id}/payments – create send or receive payments

GET /organizations/{organization_id}/environments/{environment_id}/payments/{payment_id} – get a single payment

GET /organizations/{organization_id}/environments/{environment_id}/payments – list payments (filter for direction=receive)

GET /organizations/{organization_id}/environments/{environment_id}/payments/{payment_id}/history – timeline of status changes

Key Data Shapes

Amount

Supported patterns:

BTC: smallest unit is millisatoshis

USD: smallest unit is cents

Assets: smallest unit is base units

Legacy fields amount_msats and amount_sats are still accepted but deprecated. Prefer the amount object.

Payment kinds (receive)

When creating a receive payment, you set:

bolt11 – Lightning invoice

onchain – On-chain Bitcoin address

bip21 – Unified BIP21 URI (on-chain + optional LN)

taprootasset – Taproot Asset invoice

Receive statuses

For incoming payments, the status field uses:

generating – invoice/address is being created

receiving – invoice/address created and waiting for payment

completed – fully received and credited

expired – invoice expired before being paid

failed – could not be generated or completed

Step 1 – Create a Receive Payment

Endpoint

POST
https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/payments

The same endpoint creates send and receive payments. A successful request returns 202 Accepted with an empty body; poll the payment by the id you submitted.

Headers

x-api-key: your-api-key
Content-Type: application/json

1.1 Receive a fixed‑amount Lightning (BOLT11) payment – BTC wallet

Use the “Receive Payment with Specific Amount” shape:

{
  "id": "9c3f1a80-4d7e-4a52-9f21-8a6b0c5d3e14",
  "wallet_id": "7a68a525-9d11-4c1e-a3dd-1c2bf1378ba2",
  "payment_kind": "bolt11",
  "amount": {
    "currency": "btc",
    "amount": 150000,
    "unit": "msats"
  },
  "description": "Order 123",
  "expiration": 3600
}

For USD wallets, also include a quote_id.

Required Fields

Note: The description field in your request appears as memo in the response.

Required fields (fixed‑amount receive):

id – your unique idempotent ID (UUID recommended)

wallet_id – wallet that will receive funds

currency – "btc" (must match the wallet's currency)

payment_kind – "bolt11" | "onchain" | "bip21" | "taprootasset"

amount – Amount object for the requested amount

Optional:

description – memo / description

expiration – invoice expiry in seconds (defaults to 3600; max 86400 for LN / BIP21)

1.2 Receive a Lightning invoice with any amount (BTC wallet only)

For “pay any amount” invoices, use the “Receive Payment with Any Amount” shape:

{
  "id": "b7d2e4f1-3c8a-4b96-8e05-1f2a7c9d4b63",
  "wallet_id": "7a68a525-9d11-4c1e-a3dd-1c2bf1378ba2",
  "currency": "btc",
  "payment_kind": "bolt11",
  "description": "Pay what you want",
  "expiration": 3600
}

Notes

currency must be "btc"

payment_kind can be "bolt11" or "bip21"

No amount is included; the payer chooses the amount

1.3 Receive an on‑chain BTC payment

Creates a new on‑chain address and tracks the payment:

{
  "id": "4e8c1d35-9a7b-42f0-b6d8-3c5e1a9f7204",
  "wallet_id": "7a68a525-9d11-4c1e-a3dd-1c2bf1378ba2",
  "payment_kind": "onchain",
  "amount": {
    "currency": "btc",
    "amount": 150000000,
    "unit": "msats"
  },
  "description": "Invoice 4821"
}

The response will include:

A Bitcoin address in data.address

data.receipts entries as the transaction confirms

1.4 Receive a BIP21 unified payment (on‑chain + LN)

Creates a BIP21 URI that can embed both an on‑chain address and a Lightning invoice:

{
  "id": "6a1b9c47-2e5d-4f83-9107-8b4c2d6e5a39",
  "wallet_id": "7a68a525-9d11-4c1e-a3dd-1c2bf1378ba2",
  "payment_kind": "bip21",
  "amount": {
    "currency": "btc",
    "amount": 150000000,
    "unit": "msats"
  },
  "description": "Payment for services",
  "expiration": 3600
}

The resulting data will include:

payment_request (optional BOLT11)

address (BTC address)

receipts for completed on-chain or LN parts

Step 2: Retrieve Payment Details

Endpoint

GET
https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/payments/{payment_id}

Headers

x-api-key: your-api-key

Example response – BTC Lightning receive

{
  "bip21_uri": "lightning:lntbs1500n1pn5w25ypp59sfhx5llskdp6rmsmmq3zs86xey6l4y9wkzvkjl5v2cw0ex7xd4sdqqcqzzsxqyz5vqsp5u333jtc7lh0qvkusq5ntcpm3n2jjx6tw8jz7zvpqpnt3v8e572eq9qxpqysgq4hm7n79tnk76j4ll4f7ey9mmxdyj5pwzcmyqgxtgz40vjg9w58wq73040qvuurj83jakt2zws6y9qgzg2f6gtnj3ajf0mj4gw4mdt2cqhr2tpz",
  "created_at": "2025-02-12T21:21:21.744713Z",
  "currency": "btc",
  "data": {
    "amount": {
      "amount": 150000,
      "currency": "btc",
      "unit": "msats"
    },
    "amount_msats": 150000,
    "expiration": 3600,
    "market_quote": null,
    "memo": "Order 123",
    "payment_request": "lntbs1500n1pn5w25ypp59sfhx5llskdp6rmsmmq3zs86xey6l4y9wkzvkjl5v2cw0ex7xd4sdqqcqzzsxqyz5vqsp5u333jtc7lh0qvkusq5ntcpm3n2jjx6tw8jz7zvpqpnt3v8e572eq9qxpqysgq4hm7n79tnk76j4ll4f7ey9mmxdyj5pwzcmyqgxtgz40vjg9w58wq73040qvuurj83jakt2zws6y9qgzg2f6gtnj3ajf0mj4gw4mdt2cqhr2tpz",
    "receipts": [
      {
        "data": {
          "ledger_id": "03d87c6d-2cf8-414b-929a-eceeb4c896ed",
          "payment_hash": "2222222222222222222222222222222222222222222222222222222222222222",
          "preimage": "1111111111111111111111111111111111111111111111111111111111111111"
        },
        "type": "lightning"
      }
    ]
  },
  "direction": "receive",
  "environment_id": "123e4567-e89b-12d3-a456-426614174000",
  "error": null,
  "exchanges": [],
  "frozen": [],
  "id": "11ca843c-bdaa-44b6-965a-39ac550fcef7",
  "organization_id": "b0684ab8-1130-46af-8f70-71519442f108",
  "requested_amount": {
    "amount": 150000,
    "currency": "btc",
    "unit": "msats"
  },
  "status": "completed",
  "type": "bolt11",
  "updated_at": "2025-02-12T21:23:03.173159Z",
  "wallet_id": "7a68a525-9d11-4c1e-a3dd-1c2bf1378ba2"
}

Key fields for receives:

direction – always "receive" for incoming payments

type – bolt11 | onchain | bip21 | taprootasset

data.payment_request / data.address / data.receipts depending on type

requested_amount – what you originally requested

status – current receive state (generating, receiving, expired, failed, completed)

error – structured error info if something failed

frozen – parts of the payment frozen for compliance (e.g., OFAC)

exchanges – currency exchange details when quotes/markets are involved

Listing Incoming Payments

You can list and filter payments, including only receive‑direction ones.

Endpoint

GET
https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/payments

Useful query params

direction=receive – only incoming payments

wallet_id={wallet_id} – specific wallet

statuses[]=receiving&statuses[]=completed – filter by status

Pagination: offset, limit

Example

curl 'https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/payments?direction=receive&limit=25' \
  --header 'x-api-key: your-api-key'

Viewing Payment History

To see the lifecycle of a receive payment:

GET
https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/payments/{payment_id}/history

Example response contains ordered events with timestamps and errors (if any), which is helpful for debugging or audits.

Monitoring Receive Status

Typical state transitions for incoming payments:

generating → payment being set up (invoice/address generation)

receiving → invoice/address generated, waiting for funds

completed → funds received and credited

expired → invoice expired before payment

failed → an error occurred (see error field for details)

You can monitor:

By polling GET /payments/{payment_id} until status is terminal (completed, expired, or failed)

And/or by using webhooks (recommended)

Webhooks for Receive Events (Recommended)

Create a webhook to get real‑time notifications when receive payments are generated, completed, expired, etc.

Create a webhook

POST
https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/webhooks

NewWebhookRequest includes:

id – a client-generated UUID for the webhook registration; the create response returns this same value

url – your HTTPS endpoint

name – webhook name

events – an array of event type objects; each object contains exactly one event:

[
  { "receive": "generated" },
  { "receive": "completed" },
  { "receive": "expired" },
  { "receive": "failed" }
]

The create response also returns a one-time shared_secret. Store it for signature verification; it is not included in callbacks. In a receive callback, detail.data.id is the payment ID supplied when the payment was created, not the webhook ID or organization ID. See Webhooks for the complete payload and identifier map.

You can test webhooks with:

POST
https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/webhooks/{webhook_id}/test

Receive webhook payloads include:

type: "receive"

detail.data – full Payment object

detail.event – receive event type (generated, refreshed, expired, succeeded, completed, failed)

Processing Fees

Your organization can charge an optional percentage processing fee on payments. Processing fees are off by default and are configured per wallet. See Processing FeesProcessing Fees for how to view and set your rates.

On a receive, the processing fee is included in the payer-facing amount on the generated invoice, address, or BIP21 URI. The payer funds it, and it sits outside the amount credited to your wallet.

When a rate is configured, receive payment responses include a processing_fee object and a payment_breakdown:

{
  "processing_fee": {
    "basis_points": 250,
    "amount": { "currency": "btc", "amount": 3750, "unit": "msats" }
  },
  "payment_breakdown": {
    "principal":      { "currency": "btc", "amount": 150000, "unit": "msats" },
    "network_fee":    { "currency": "btc", "amount": 0,      "unit": "msats" },
    "processing_fee": { "currency": "btc", "amount": 3750,   "unit": "msats" }
  }
}

processing_fee.basis_points – the configured rate applied to this payment. 100 is 1%, 250 is 2.5%.

processing_fee.amount – the fee calculated for this payment, in the principal's assessment currency. It is available before settlement and stays stable across partial or excess payments.

data.fees – the processing fee assessed for this receive, when configured.

payment_breakdown.processing_fee – the authoritative settled fee. Use this for reconciliation.

Both fields are omitted when no processing fee applies, so this does not affect integrations that have no rate configured.

Error Handling

Common HTTP responses from Payments endpoints:

202 – receive payment creation accepted (invoice/address generation started)

200 – successful retrieval / list / history

400 – invalid request (bad IDs, missing fields, invalid quote for USD, etc.)

403 – authentication/authorization error

404 – payment not found in this organization + environment

500 – server error

Within the payment object:

Receive errors (in error) include:

receive_failed

expired

rejected

For USD conversions, data.market_quote + exchanges help you understand which rate was used.
