Introduction
The Voltage API enables you to integrate Lightning Network functionality into your applications. This guide will walk you through common tasks and help you get started with the API.
If you are starting here we are assuming that you already have a team and a staging wallet setup for you. If you do not, the Wallet Setup Guide will get you ready.
Wallet setup guide
﻿
Base URL
https://voltageapi.com/v1
Authentication
The Voltage API uses x-api-key authentication methods for API calls:
API Key Authentication (via x-api-key header):
--header 'x-api-key: YOUR_API_KEY'
Generating API Key
You can manage your API keys by visiting your team page and clicking on "API Keys"
﻿
Be sure to select the correct Environment for your API key when generating and give it a descriptive name.
﻿
Quick Start Guides
Receiving a payment
The payment flow for receiving payments follows these steps:
1: Create a new payment (Returns 202 on success)
Bash
curl 'https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/payments' \
  --request POST \
  --data '{
    "amount_msats": 10000,
    "currency": "btc",
    "description": "test payment",
    "id": {payment_id}, // unique UUID created by you
    "payment_kind": "bolt11",
    "wallet_id": {wallet_id}
  }'
curl 'https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/payments' \
  --request POST \
  --data '{
    "amount_msats": 10000,
    "currency": "btc",
    "description": "test payment",
    "id": {payment_id}, // unique UUID created by you
    "payment_kind": "bolt11",
    "wallet_id": {wallet_id}
  }'
﻿
2: After receiving 202, fetch the payment details to get the invoice
Bash
curl 'https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/payments/{payment_id}' \
  --request GET
curl 'https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/payments/{payment_id}' \
  --request GET
﻿
Important: The payment creation endpoint returns a 202 status code on success, indicating the request was accepted. You must then fetch the payment details separately to get the invoice and monitor its status.
Example Payment Details Response
JSON
{
    "bip21_uri": "lightning:lntbs140n1pnag...",
    "created_at": "2025-03-14T16:08:11.692963Z",
    "currency": "btc",
    "data": {
        "amount_msats": 14000,
        "memo": "test payment",
        "payment_request": "lntbs140n1pnag..."
    },
    "direction": "receive",
    "environment_id": "{environment_id}",
    "error": null,
    "id": "11ca843c-bdaa-44b6-965a-39ac550fcdf3",
    "organization_id": "{organization_id}",
    "status": "receiving",
    "type": "bolt11",
    "updated_at": "2025-03-14T16:08:13.959324Z",
    "wallet_id": "{wallet_id}"
}
{
    "bip21_uri": "lightning:lntbs140n1pnag...",
    "created_at": "2025-03-14T16:08:11.692963Z",
    "currency": "btc",
    "data": {
        "amount_msats": 14000,
        "memo": "test payment",
        "payment_request": "lntbs140n1pnag..."
    },
    "direction": "receive",
    "environment_id": "{environment_id}",
    "error": null,
    "id": "11ca843c-bdaa-44b6-965a-39ac550fcdf3",
    "organization_id": "{organization_id}",
    "status": "receiving",
    "type": "bolt11",
    "updated_at": "2025-03-14T16:08:13.959324Z",
    "wallet_id": "{wallet_id}"
}
﻿
Sending a Payment
The payment flow for sending payments follows these steps:
1: Initiate payment send (returns 202 on success)
Bash
curl 'https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/payments' \
  --request POST \
  --header 'x-api-key: your-api-key' \
  --header 'Content-Type: application/json' \
  --data '{
    "id": "68d00852-8dd8-4c71-94d2-91c84695da78",  # Unique payment identifier
    "wallet_id": "{wallet_id}",
    "currency": "btc",
    "type": "bolt11",
    "data": {
      # Optional when payment_request already has an amount
      # Required when payment_request has no amount
      # If provided with an amount-containing payment_request, values must match
      "amount_msats": 150000,

      # Optional: defaults to 1% of payment value or 1,000 msats (whichever is greater)
      "max_fee_msats": 1000,

      # Required: Lightning invoice to pay
      "payment_request": "lntbs1500n1p..."
    }
  }'
curl 'https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/payments' \
  --request POST \
  --header 'x-api-key: your-api-key' \
  --header 'Content-Type: application/json' \
  --data '{
    "id": "68d00852-8dd8-4c71-94d2-91c84695da78",  # Unique payment identifier
    "wallet_id": "{wallet_id}",
    "currency": "btc",
    "type": "bolt11",
    "data": {
      # Optional when payment_request already has an amount
      # Required when payment_request has no amount
      # If provided with an amount-containing payment_request, values must match
      "amount_msats": 150000,

      # Optional: defaults to 1% of payment value or 1,000 msats (whichever is greater)
      "max_fee_msats": 1000,

      # Required: Lightning invoice to pay
      "payment_request": "lntbs1500n1p..."
    }
  }'
﻿
2: After receiving 202, fetch payment status to monitor progress
Bash
curl 'https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/payments/{payment_id}' \
  --request GET
curl 'https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/payments/{payment_id}' \
  --request GET
﻿
Important: Like the receive flow, the send payment endpoint returns a 202 status code on success. You must fetch the payment details separately to monitor its status.
Payment Status Monitoring
When sending or receiving payments, you must actively monitor the payment status by fetching the payment details. The status field will progress through these states:
For sent payments:
Initial: sending
Final: completed or failed
For received payments:
Initial: receiving
Final: completed or failed
Best practices for monitoring:
Poll the payment status endpoint every few seconds
Implement appropriate timeout logic
Handle both success and error states
Consider implementing webhook notifications for status changes
Example of checking payment status:
JS
async function monitorPayment(paymentId) {
  while (true) {
    const response = await fetchPaymentStatus(paymentId);

    if (response.status === 'completed') {
      return response; // Payment successful
    }
    if (response.status === 'failed') {
      throw new Error(response.error || 'Payment failed');
    }

    // Wait before checking again
    await new Promise(resolve => setTimeout(resolve, 2000));
  }
}
async function monitorPayment(paymentId) {
  while (true) {
    const response = await fetchPaymentStatus(paymentId);

    if (response.status === 'completed') {
      return response; // Payment successful
    }
    if (response.status === 'failed') {
      throw new Error(response.error || 'Payment failed');
    }

    // Wait before checking again
    await new Promise(resolve => setTimeout(resolve, 2000));
  }
}
﻿
Wallet Balance Management
Regularly check wallet balances to ensure sufficient funds:
Curl
curl 'https://voltageapi.com/v1/organizations/{organization_id}/wallets/{wallet_id}'
curl 'https://voltageapi.com/v1/organizations/{organization_id}/wallets/{wallet_id}'
﻿
Payment History
Track payment history and events:
Curl
curl 'https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/payments/{payment_id}/history'
curl 'https://voltageapi.com/v1/organizations/{organization_id}/environments/{environment_id}/payments/{payment_id}/history'
﻿
Creating A Staging Wallet through the API:
In order to create a Staging Wallet through the API you must have already created your first wallet through the UI.  Doing this will autmatically generated you a line of credit ID that you can use to start creating new wallets through the API.

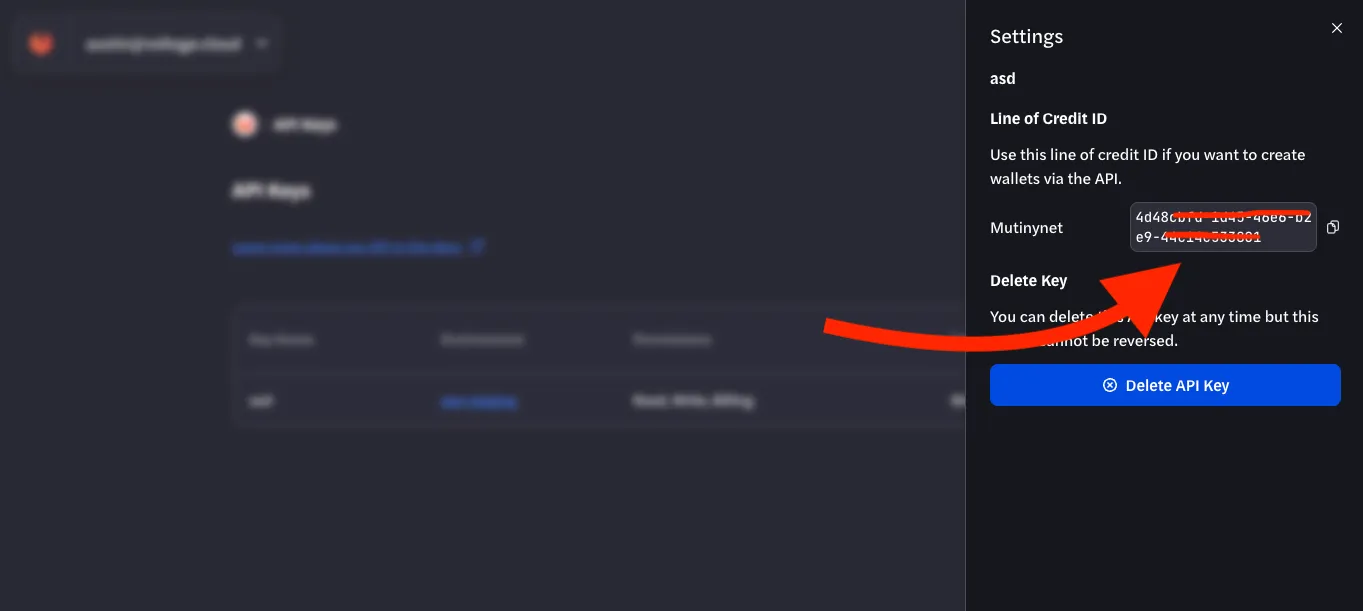

After creating your first wallet navigate to the API Keys page
﻿
Click on your created API key
﻿
A sidebar will popout and your line of credit ID will be available to copy
﻿
Great! You now have the info required to make the request BELOW and create staging wallets through the API.
Curl
curl 'https://voltageapi.com/v1/organizations/{organization_id}/wallets' \
  --request POST \
  --data '{
    "environment_id": {environment_id},
    "id": "7a68a525-9d11-4c1e-a3dd-1c2bf1378ba2",  # UUID you generate
    "line_of_credit_id": "your-line-of-credit-id",
    # denominated in msats
    "limit": 100000000,
    "metadata": {
      "tag": "testing wallet"
    },
    "name": "My First Wallet",
    "network": "mutinynet"
  }'
curl 'https://voltageapi.com/v1/organizations/{organization_id}/wallets' \
  --request POST \
  --data '{
    "environment_id": {environment_id},
    "id": "7a68a525-9d11-4c1e-a3dd-1c2bf1378ba2",  # UUID you generate
    "line_of_credit_id": "your-line-of-credit-id",
    # denominated in msats
    "limit": 100000000,
    "metadata": {
      "tag": "testing wallet"
    },
    "name": "My First Wallet",
    "network": "mutinynet"
  }'
﻿
Metadata Support
Add custom metadata to wallets for better organization:
Bash
curl 'https://voltageapi.com/v1/organizations/{organization_id}/wallets' \
  --request POST \
  --data '{
    "name": "Customer Wallet",
    "metadata": {
      "customer_id": "cust_123",
      "purpose": "subscription_payments"
    }
    // ... other wallet creation fields
  }'
curl 'https://voltageapi.com/v1/organizations/{organization_id}/wallets' \
  --request POST \
  --data '{
    "name": "Customer Wallet",
    "metadata": {
      "customer_id": "cust_123",
      "purpose": "subscription_payments"
    }
    // ... other wallet creation fields
  }'
﻿
Error Handling
The API uses standard HTTP status codes:
200: Success
201: Resource created
202: Successfully requested a new payment be created
400: Bad request
403: Authentication/authorization error
404: Resource not found
500: Server error
Always check the response status and handle errors appropriately.
Support and Resources
For additional support:
﻿Review the full API documentation﻿
﻿
Remember to always use appropriate error handling and logging in your integration to ensure reliable operation of your Lightning Network payments.
