Beta: Voltage Checkout is currently in beta. Availability, supported payment methods, configuration, and interfaces may change. Confirm that the current beta fits your implementation before launching it in production.

Voltage Checkout gives merchants a hosted Lightning payment page without requiring them to build and operate the payment interface themselves.

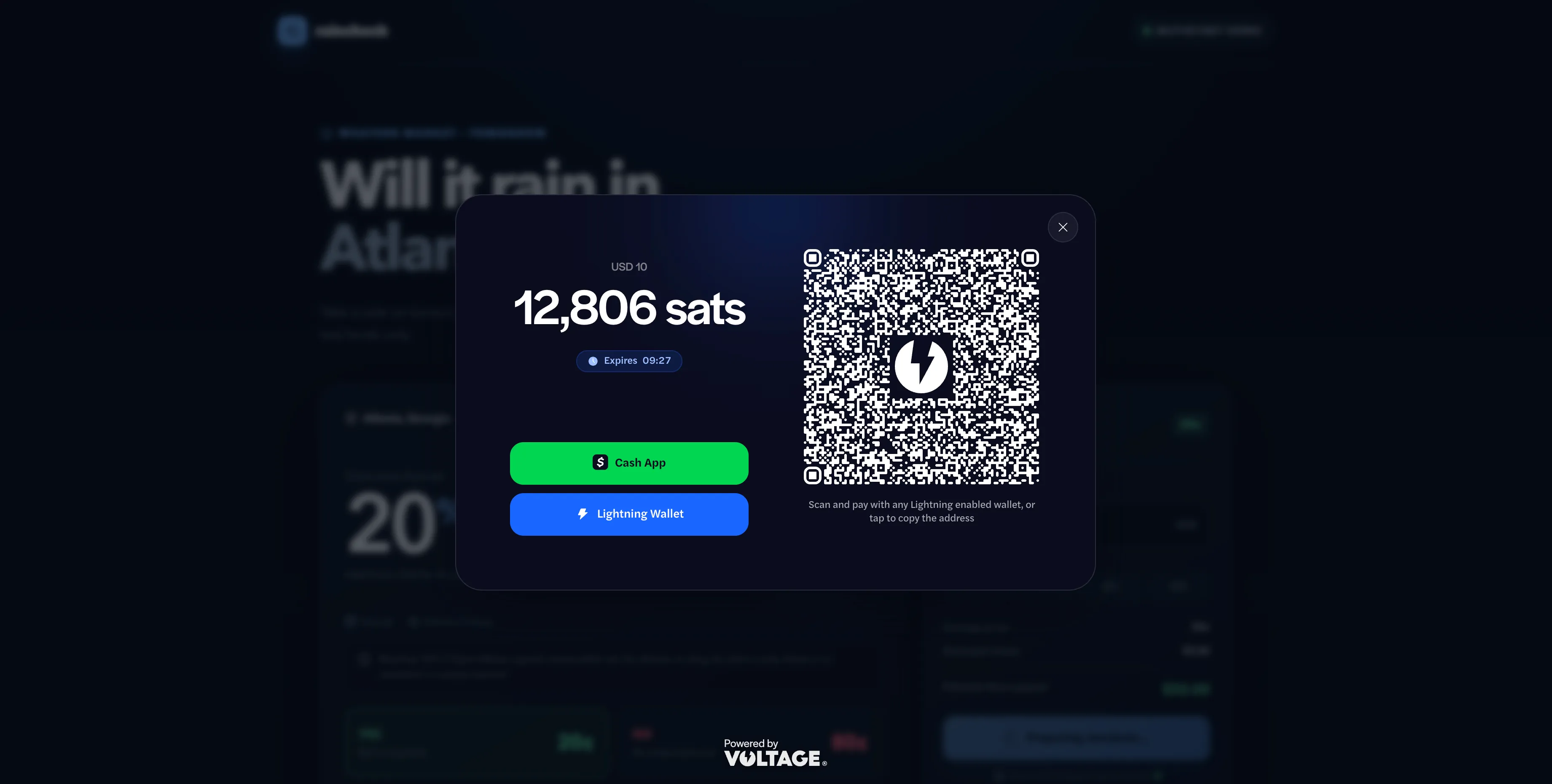

See the Demo

If you want to see a demo of what to expect from the checkout, you can view a live example here.

Raincheck Demo

How Checkout works

Your server creates a checkout session for an order.

Voltage returns a hosted checkout_url, checkout session ID, and payment ID.

Your browser opens the returned URL, preferably with the Voltage Checkout JavaScript SDK.

The customer pays the Lightning invoice.

The hosted page reports status to the browser.

Your server verifies the payment before fulfilling the order.

The browser experience helps the customer complete payment, but it is not the authoritative payment record. A customer can close a tab, lose network access, or modify browser code, so always verify payment from your server.

Before you integrate

Make sure you have a Voltage wallet that you can use (Mutinynet for testing, or mainnet for real money). You can learn more about those topics in the Wallet Setup GuideWallet Setup Guide or Wallet ManagementWallet Management article.

Configure browser origins

First, decide which browser origins you want to allow when using the Checkout in an iframe or SDK overlay. For example, you could declare that you only want the Checkout to be shown on shop.example.com, as well as staging.shop.example.com for testing and localhost:5173 for local development. You can also allow your Checkout to appear on any domain name, though this is not recommended. If you choose "Deny", then you are effectively disabling Checkout for a given environment,

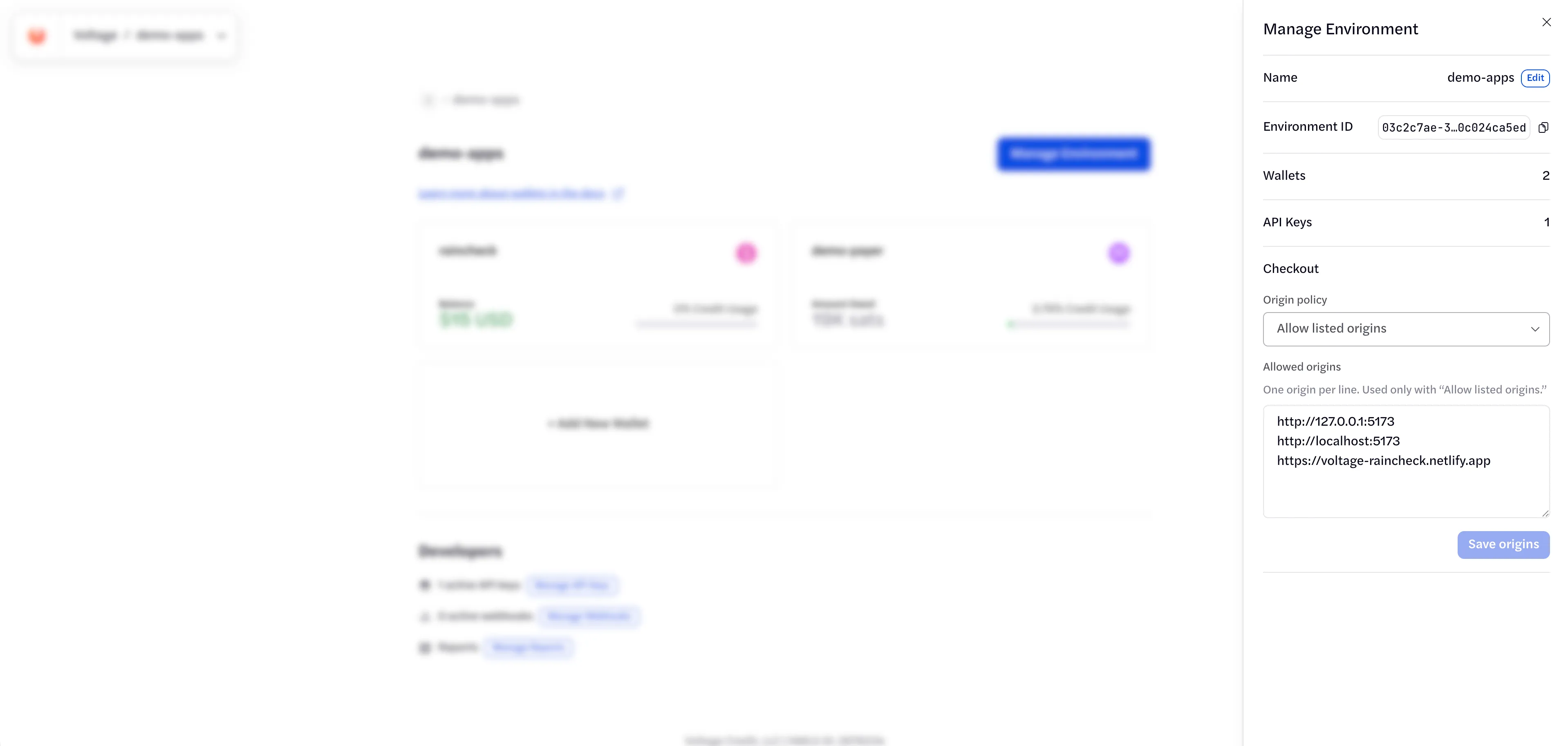

To configure browser origins:

Open the organization and environment.

Select Manage Environment.

Find Checkout.

Select an origin policy.

If you use an allowlist, enter one exact origin per line.

Save the origins.

Formatting the origin

An origin contains a scheme, hostname, and optional port. It does not contain a path, query, user information, or fragment.

Valid origins:

https://shop.example.com https://admin.example.com:8443 http://localhost:5173 http://127.0.0.1:5173

Invalid origins:

shop.example.com https://shop.example.com/checkout https://shop.example.com?store=1 https://*.example.com

Policy	Behavior	Recommended use
deny_all	Prevents browser embedding.	Disable browser checkout access.
allowlist	Permits only exact entries in allowed_origins.	Live use and normal testing.
allow_all	Permits any browser origin.	Short-lived troubleshooting only.

localhost and 127.0.0.1 are different origins. Netlify, Vercel, and similar deploy previews also have origins that differ from the primary site. Add each origin intentionally, and review the list before launch. Browser-origin settings are specific to each environment. When switching environments, re-add your application’s exact origin in the new environment—for example, https://voltage-raincheck.netlify.app. This is separate from the API key’s IP allowlist.

Create a checkout session

A checkout session should be created from your server. Never call the Voltage session endpoint directly from browser code, as this could expose your API key.

POST {api_base}/organizations/{organization_id}/environments/{environment_id}/checkout/sessions

Send the environment API key in the x-api-key header.

Example

The following Node.js example creates a 10,000-satoshi BTC BOLT11 checkout with a 15-minute lifetime. The amount is sent as 10,000,000 millisatoshis (msats).

Use the API base, organization, environment, wallet, and API-key values for the environment you intend to charge. During development, those values should point to an environment containing a Mutinynet wallet. Switch them to your live environment and mainnet wallet when you are ready to accept live payments.

Amount encoding

Send integer amounts in the unit expected for the currency:

Customer amount	Request value
1 satoshi	{"currency": "btc", "amount": 1000}
1,000 satoshis	{"currency": "btc", "amount": 1000000}
10,000 satoshis	{"currency": "btc", "amount": 10000000}

BTC uses millisatoshis: 1 satoshi = 1,000 msats. Send the integer msat amount in amount.amount; do not send decimal BTC values.

Core request fields

Field	Requirement	Description
id	Required	Merchant-generated UUID and checkout-session idempotency key.
wallet_id	Required	Wallet that receives the payment.
payment_kind	Required	Use bolt11 for the verified beta flow.
amount	Required for fixed checkout	Currency and integer amount.
expires_at	Required	Future ISO 8601 timestamp. Fifteen minutes is a practical default.
payment_id	Optional	Merchant-generated payment UUID. Voltage generates one when omitted.
description	Optional	Payment description associated with the session.
metadata	Optional	Merchant references such as an order ID.

The session id is the idempotency key. Reusing it with the same immutable inputs replays the request safely. Reusing it with different immutable inputs returns 409 Conflict.

Successful response

A successful request returns 201 Created:

{ "id": "11111111-1111-4111-8111-111111111111", "payment_id": "22222222-2222-4222-8222-222222222222", "checkout_token": "vlt_co_REDACTED", "checkout_url": "https://app.voltage.cloud/cs/11111111-1111-4111-8111-111111111111#vlt_co_REDACTED", "expires_at": "2026-08-25T19:00:00Z", "origin_policy": "allowlist", "allowed_origins": ["https://shop.example.com"] }

Use checkout_url exactly as returned. The URL fragment contains a bearer credential. Do not log it, send it to analytics or error tracking, include it in screenshots, or move it into a query parameter.

Open Checkout with the JavaScript SDK

Load the Checkout SDK:

Your browser should call your own server endpoint, receive the complete checkout URL, and pass it to the SDK:

async function startCheckout(productId) { const response = await fetch('/api/checkout', { method: 'POST', headers: { 'content-type': 'application/json' }, body: JSON.stringify({ product_id: productId }) }); const checkout = await response.json(); if (!response.ok) { throw new Error(checkout.error || 'Unable to create checkout session.'); } let instance; instance = window.VoltageCheckout.open({ checkoutUrl: checkout.checkout_url, theme: 'dark', dismissible: true, title: 'Pay Example Store', amountDisplay: { primary: 'requested_amount', secondary: 'auto', bitcoinUnit: 'sats', locale: 'en-US', currencyDisplay: 'code' }, onComplete(payload) { // This is a UI signal. Verification still happens on the server. instance.close(); showOrderPendingVerification(payload.session_id); }, onExpired() { showCheckoutExpired(); }, onFailed() { showCheckoutFailed(); }, onCancel() { showCheckoutCancelled(); }, onClose() { restoreMerchantPage(); } }); }

The SDK creates and sizes the iframe, validates message origins, locks page scrolling, restores focus, and removes the overlay when closed. Do not build a direct iframe integration unless the SDK cannot meet a verified requirement and the integration receives a separate security review.

SDK options

Option	Description
checkoutUrl	Complete checkout_url returned by Voltage. Required.
theme	light or dark.
dismissible	When false, hides customer dismissal controls. Merchant code can still call close().
title	Accessible iframe title. Describe the payment task.
amountDisplay.primary	amount, requested_amount, or custom display text.
amountDisplay.secondary	auto, hidden, or custom display text.
amountDisplay.bitcoinUnit	auto, btc, or sats.
amountDisplay.locale	BCP 47 locale such as en-US.
amountDisplay.currencyDisplay	symbol or code.
onComplete	Checkout reported a completed payment. Verify it on your server.
onExpired	Session expired before completion.
onFailed	Checkout reported a failed payment.
onCancel	Checkout reported an explicit cancellation event.
onMessage	Receives every accepted Voltage checkout message.
onClose	Runs after the SDK removes the overlay.

open() returns an object with:

close() — removes the overlay programmatically.

iframe — the iframe element created by the SDK.

Terminal callbacks do not automatically remove the overlay. This lets the hosted page display its completed, failed, or expired state. Call close() when your merchant experience should continue elsewhere.

An ordinary customer dismissal runs onClose; it does not imply payment failure or cancellation. Before creating another payment, check the original order on your server.

Example completion payload

Terminal callback payloads can include the session and amount details:

{ "status": "completed", "session_id": "11111111-1111-4111-8111-111111111111", "amount": { "currency": "btc", "amount": 10000000, "unit": "msats" }, "btc_amount": { "currency": "btc", "amount": 10000000, "unit": "msats" } }

Use session_id to update the customer interface, then verify the corresponding payment from trusted server code.

Hosted redirect

Use a hosted redirect only when the SDK overlay cannot meet your requirements:

window.location.assign(checkout.checkout_url);

Validate navigation, return, order-status, and recovery behavior before launch. A redirect or browser callback must not be your only confirmation that an order was paid.

Verify payment on your server

Store the checkout session ID and payment ID with your merchant order. Before fulfillment, either process a trusted Voltage webhook or retrieve the payment from the Payments API:

GET {api_base}/organizations/{organization_id}/environments/{environment_id}/payments/{payment_id}

Authenticate from your server. Fulfill only after the authoritative payment state is complete, and make fulfillment idempotent so retries or duplicate webhook delivery cannot produce a second order.

See Webhooks and the Voltage Payments API for the complete verification contract.

Payment lifecycle

Status	Meaning
generating	Voltage is creating the payment request.
receiving	The request is ready and Voltage is waiting for payment.
completed	Voltage completed the receive payment.
failed	Voltage could not complete the payment.
expired	The session reached expires_at before completion.

Browser dismissal is not a payment status. A customer may close or refresh the page while payment is still in flight.

Give customers a merchant-controlled order-status page. If a session is interrupted, verify the existing payment before creating another checkout. If you retry session creation after an uncertain network response, reuse the original session ID and immutable inputs first.

Security checklist

Keep the environment API key on your server.

Never use a VITE_, NEXT_PUBLIC_, or similar public prefix for the API key.

Create checkout sessions through a merchant-controlled server endpoint.

Use the complete returned checkout URL without reconstructing it.

Treat the checkout token and checkout URL as bearer credentials.

Redact tokens and URLs from logs, analytics, screenshots, and support tickets.

Use an exact origin allowlist for every live browser origin.

Treat browser callbacks as UI signals only.

Verify payment on the server before fulfillment.

Make order fulfillment idempotent.

Troubleshooting

Symptom	Likely cause	What to check
401 Unauthorized creating a session	Missing or invalid API key.	x-api-key, API environment, and secret loading.
403 Forbidden creating a session	API key lacks access.	Organization, environment, and key permissions.
409 Conflict creating a session	Session ID reused with different inputs.	Replay the original request or generate a new UUID.
Browser says the checkout refused to connect	Origin blocked by checkout framing policy.	Exact scheme, hostname, port, and environment settings.
Checkout says its token is missing	URL fragment was removed.	Pass the complete returned checkout_url unchanged.
SDK does not load	Wrong script URL, CSP, network, or script failure.	SDK URL and browser console.
Checkout remains in generating	Payment creation or status updates are delayed.	Payment and session records in Voltage.
Checkout completes but merchant UI does not update	Callback or origin-message problem.	Parent origin, SDK version, callback handlers, and console.
Checkout returns a plain-text 5xx	Hosted checkout or upstream service is unavailable.	Record the time and IDs, avoid logging the token, and contact support.
