Risk Management

20 min

The purpose of this document is to provide an overview of Voltage's built-in solution for managing Lightning risk. Additionally, it will guide you on how to integrate your own compliance partners and access your transaction data directly.

Our Solution

Amboss Reflex: https://amboss.tech/reflex

How it works:

Reflex conducts three primary validations—Invoice, Node Pubkey, and Lightning Address. The sections below detail the specific checks performed for each.

Invoice Input Evaluation Process

When an invoice is submitted, the system performs a structured sequence of data checks. Each step ensures that the payment details meet compliance requirements and internal risk controls.

Step 1: Extract the Destination Pubkey

1.1 Source of Funds Check

The pubkey is screened against the OFAC Sanctions List, known ransomware addresses, and any custom address lists configured in the system.

1.2 IP Address Check

The destination pubkey IP is verified against OFAC country restrictions and any custom country lists.

1.3 Associated Pubkey Check

The destination pubkey is cross-checked with any additional pubkey-specific rules or policies configured by the operator.

Step 2: Evaluate the Route Hint Pubkey

If the invoice includes route hints, each hint undergoes the same set of validations:

2.1 Source of Funds Check

Screened against OFAC, ransomware, and custom address lists.

2.2 IP Address Check

Verified against OFAC country restrictions and any custom country list.

2.3 Associated Pubkey Check

Any configured pubkey-specific checks are applied.

Step 3: Verify the Invoice Amount

The payment amount is compared against a $10,000 standard threshold.

If a custom threshold is defined by the operator, that value is used instead.

Node Pubkey Input Evaluation Process

When a node pubkey is provided as input, the system evaluates it by deriving related data and applying layered compliance and risk checks. The process follows this sequence:

Step 1: Derive Peer Pubkeys

For each peer connected to the input pubkey, the system retrieves associated addresses:

Tor Addresses

Collected but not subject to sanctions or country list checks.

IP Clearnet Addresses

Each address is screened against the OFAC Sanctions List and any configured custom country list.

Step 2: Derive Channel IDs

From the node pubkey, the system gathers all channel IDs.

Each channel ID is used to identify related onchain addresses.

Step 3: Validate Onchain Addresses

For every onchain address linked to a channel ID:

Source of Funds Check

The address is screened against the OFAC Sanctions List, known ransomware addresses, and any custom address lists defined by the operator.

Step 4: Determine Result

After all checks, the system outputs one of the following results:

Pass – All checks were completed with no issues.

Fail – One or more checks identified a compliance or policy violation.

Skipped – The check was not applicable to this input type.

Error – The check could not be completed due to a system or data error.

Lightning Address Input Evaluation Process

When a Lightning Address is submitted, the system resolves and validates the underlying details. The evaluation process includes the following steps:

Step 1: Resolve Lightning Address

The system parses the Lightning Address to confirm it is properly formatted and valid.

Step 2: Derive Server IP Address

The server hosting the Lightning Address is identified by its IP address.

This IP is subject to compliance and risk screening (e.g., against OFAC or custom country lists if configured).

Step 3: Retrieve Invoice Data

Once the Lightning Address is resolved, the system requests an invoice and performs further checks:

Destination Pubkey

Any associated pubkeys are identified and validated according to configured pubkey checks.

Route Hint Pubkey

Any associated pubkeys are also derived and validated according to the same checks.

Step 4: Determine Result

Based on the outcomes of all validations, the system assigns one of four results:

Pass – All checks were completed successfully.

Fail – One or more checks identified a compliance or policy violation.

Skipped – The check did not apply to this input type.

Error – The evaluation could not be completed due to a system or data error.

Accessing Payment Data through the UI

Each wallet shows its own payment activity in All Payments and Payment Requests. Review the direction, type, description, current status, amount, and last-updated time before taking an operational action.

Use Filters to narrow results by date, payment ID, checkout session ID, status, payment type, or direction. Use Reports when you need an exportable Payment History or Wallet Balance Snapshot for a selected date range.

A review screen is a pre-submission control; a completed history row is evidence of terminal product state. Continue to reconcile terminal state through the Payments API and webhooks for automated workflows.

Test Lightning payment review drawer before submission

Use the review step to verify payment details before submission.

Outgoing completed payment in the sending wallet history

Confirm the terminal outgoing state in the sending wallet.

Incoming completed payment in the receiving wallet history

Cross-check the corresponding incoming state in the receiving wallet.

Payment activity filters for date, identifiers, status, type, and direction

Use filters to isolate the payment records relevant to an investigation.

Accessing Transactions Data through the API

Get All Payments

Endpoint: GET /organizations/{organization_id}/environments/{environment_id}/payments

Required Headers:

x-api-key: YOUR_API_KEY

Query Parameters (all optional):

offset - Pagination offset (integer)

limit - Number of results (integer)

wallet_id - Filter by specific wallet (UUID)

statuses - Filter by payment status (array)

sort_key - Sort by created_at or updated_at

sort_order - ASC or DESC

kind - Payment type: bolt11, onchain, bip21

direction - send or receive

start_date / end_date - Date range filter (ISO format)

Example Request:

curl 'https://voltageapi.com/v1/organizations/{org_id}/environments/{env_id}/payments?limit=10&sort_order=DESC' \
  --header 'x-api-key: YOUR_API_KEY'

Response Format:

{
  "items": [
    {
      "id": "payment-uuid",
      "status": "completed|sending|receiving|failed",
      "type": "bolt11|onchain|bip21",
      "direction": "send|receive",
      "currency": "btc",
      "created_at": "2024-11-21T18:47:04.008Z",
      "updated_at": "2024-11-21T18:47:04.008Z",
      "wallet_id": "wallet-uuid",
      "data": {
        // Payment-specific details (varies by type)
      },
      "error": null
    }
  ],
  "total": 4,
  "offset": 0,
  "limit": 100
}

Get Single Payment Details

Endpoint: GET /organizations/{organization_id}/environments/{environment_id}/payments/{payment_id}

Example Request:

curl 'https://voltageapi.com/v1/organizations/{org_id}/environments/{env_id}/payments/{payment_id}' \
  --header 'x-api-key: YOUR_API_KEY'

Response: Single payment object with same structure as above.

Get Payment History

Endpoint: GET /organizations/{organization_id}/environments/{environment_id}/payments/{payment_id}/history

Example Request:

curl 'https://voltageapi.com/v1/organizations/{org_id}/environments/{env_id}/payments/{payment_id}/history' \
  --header 'x-api-key: YOUR_SECRET_TOKEN'

Data Structure by Payment Type

Lightning (bolt11):

"data": {
  "amount_msats": 150000,
  "max_fee_msats": 1000,
  "memo": "testing",
  "payment_request": "lntbs1500n1p..."
}

On-chain:

"data": {
  "address": "tb1pzkhtj4ld86g9c...",
  "amount_sats": 150000,
  "fees_sats": 10,
  "max_fee_sats": 1000,
  "receipts": [
    {
      "amount_sats": 10000,
      "height_mined_at": 1888021,
      "tx_id": "a22ec88f7a84a705..."
    }
  ]
}

Response Codes

200 - Success

400 - Bad request format

403 - No access (requires organization READ access)

404 - Payment not found

500 - Server error

Key Endpoints

Transfers:

POST /v2/users//transfers

POST /v1/users//transfers/sent

Withdrawal Attempts:

POST /v2/users//withdrawal-attempts

POST /v1/users//withdrawaladdresses

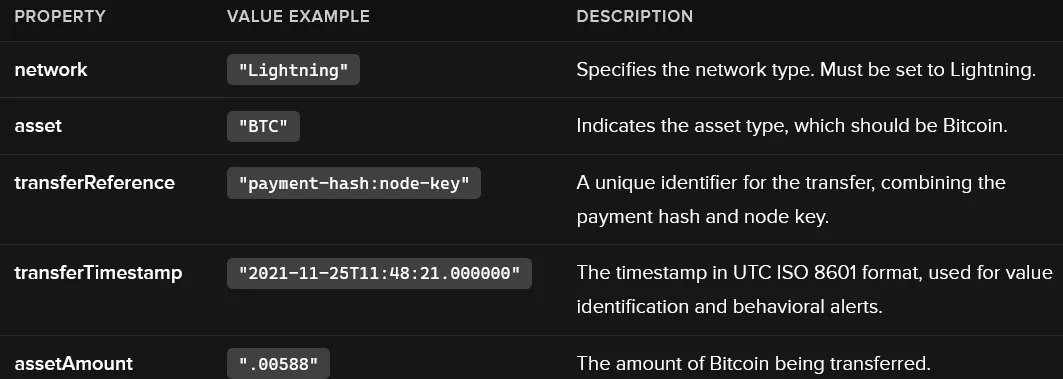

Required Request Properties

When registering LN transfers, the following properties must be specified:

Additional Notes:

transferReference: This must be formatted as payment-hash:node-key. The payment hash can be obtained from the BOLT11 invoice.

transferTimestamp: This is crucial for identifying the USD value of the Bitcoin transferred and generating alerts.

assetAmount: This value must be in Bitcoin.

Optional Request Properties

While not required, the following properties can be included without causing errors:

outputAddress: Use the Node Key instead of a standard wallet address.

assetPrice and assetDenomination: These can be sent but will not be returned in subsequent GET requests.

Example cURL Command to register a sent LN transfer using the v2 endpoint:

$ curl -X POST 'https://api.chainalysis.com/api/kyt/v2/users/new_user_01/transfers' \
  --header 'Token: {YOUR_API_KEY}' \
  --header 'Content-type: application/json' \
  --data '{
    "network": "Lightning",
    "asset": "BTC",
    "transferReference": "2db4d5579a0e198bd5ce8ffe83ecd0de94acde98cde94125337e2419ebb4cc50:02a0c9089ace681ef4e6ae5310b028d9c2a09187bfbc616da6251e3d08801851b8",
    "direction": "sent",
    "transferTimestamp": "2021-11-25T11:48:21.000000",
    "assetAmount": ".00588"
}'

To register the same transfer using the v1 endpoint:

$ curl -X POST 'https://api.chainalysis.com/api/kyt/v1/users/new_user_01/transfers/sent' \
  --header 'Token: {YOUR_API_KEY}' \
  --header 'Content-type: application/json' \
  --data-raw '[
    {
      "network": "Lightning",
      "asset": "BTC",
      "transferReference": "2db4d5579a0e198bd5ce8ffe83ecd0de94acde98cde94125337e2419ebb4cc50:02a0c9089ace681ef4e6ae5310b028d9c2a09187bfbc616da6251e3d08801851b8",
      "transferTimestamp": "2021-11-25T11:48:21.000000",
      "assetAmount": ".00588"
    }
  ]'
